Joiner Machinery Co. , Ltd. Your Best Partner of Extrusion
7 Years
| Ask Lasest Price | |
| Brand Name : | JOINER |
| Model Number : | As request |
| Certification : | ISO9001:2015 |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 100 pieses/month |
| Delivery Time : | 70 days |

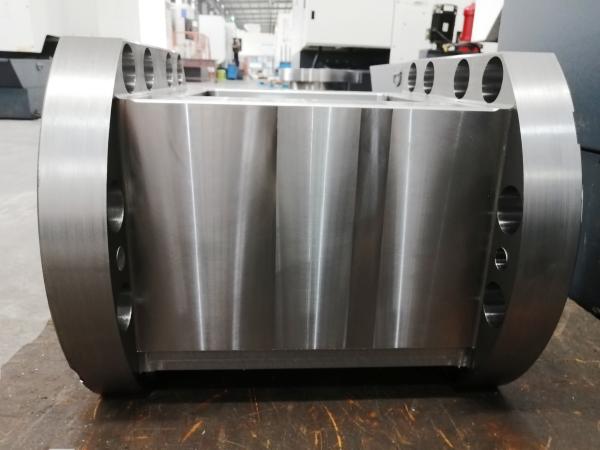

CNC Machining Accuracy Twin Screw Extruder Parts Rectangular Barrel
1. Brief introduction:
Barrels are used as an important part for extruder accessory. It is widely used in various industries. Such as XPS extruder, PS granulator, PE pipe extrusion machine. Because of the difference of raw materials, the requirements for the Barrels are different. For example, when some glass fiber materials are extruded, the wear is larger and the gap between the screw and the Barrels is strictly required. the balance of wear resistance and cost is need to be taken full consideration.
We manufacture barrels for co-rotating twin screw extruders ranging from 15.6 mm to 400 mm and over. Our manufacturing specializes in barrels for twin screw extruders and is optimized for flexible order handling.
2. Standard Barrel Parameter Table
| Standard Barrel Parameter Table (selection table) | |||
| Model | Size(mm) W.H.L | Hole Diameter(mm) | Center Distance(mm) |
| JN-20 | 115.105.132 | Φ23 | 18.4 |
| JN-30 | 135.115.120 | Φ30.6 | 26 |
| JN-35 | 140.120.140 | Φ36 | 30 |
| JN-36 | 160.140.150 | Φ36 | 30 |
| JN-40 | 175.145.160 | Φ41.6 | 34.5 |
| JN-50 | 190.150.190 | Φ51 | 42 |
| JN-52 | 200.155.210 | Φ52 | 43 |
| JN-53 | 210.160.220 | Φ53.3 | 48 |
| JN-58 | 220.175.240 | Φ58 | 48 |
| JN-60 | 210.170.240 | Φ60 | 52 |
| JN-65 | 210.170.240 | Φ63 | 52 |
| JN-75 | 260.200.290 | Φ71.8 | 60 |
| JN-85 | 280.215.320 | Φ81.9 | 67.8 |
| JN-92 | 310.240.360 | Φ92 | 78 |
| JN-95 | 310.240.360 | Φ94 | 78 |
| JN-110 | 330.240.420 | Φ109 | 91.5 |
| JN-125 | 390.290.500 | Φ125 | 98 |
| JN-135 | 370.300.410 | Φ134 | 110 |
3. materials:
4. Example water channel
5. Packing Details:
According to your order quantities and products sizes to pack:
1. Rust-proof oil processing,
2. Oiled paper packages,
3. Bubble wrap package,
4. Special foam packaging,
5. Packing,
6. Sealing.
6. Service Network Assurance
We have a professional sales team who can quickly understand the real needs of customers, and put forward reasonable solutions for them. The company not only offers supportive services for both domestic and foreign brands, but also provides retail services to outstanding end customers in the industry. Now Joiner products are exported to more than 30 countries including countries such as Europe and America.
Joiner Machinery Co.,Ltd has several years experience in the
manufacture and supply of new and refurbished wear parts for all
major makes of twin-screw extruders and the Industries involved in
plastics industry, chemical industry, powder coating, food food
industry, wood plastic etc..
Through close working relationships with our customers we have been
able to fulfill their requirements. Flexibility enables us to
design and manufacture standard and bespoke components for unique
applications.Through our highly trained and experienced staff we
are able to offer technical support and advice.
|
