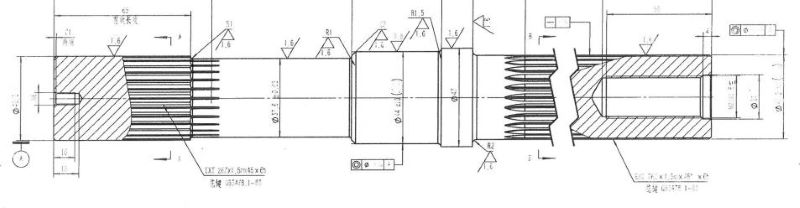

High Torque Involute Inner Spline Twin Screw Extruder Transmission Screw Shafts

1. Shaft Range:

Diameter:10-120mm
Lenth:500-9000mm

Diameter:120-260mm
Length:500-6000mm

2. Introduction:

As the twin screw extruder moves toward high speed and high torque, higher requirements are placed on the strength (especially thermal strength) and accuracy of the twin screw extruder shaft, Through extensive research and painstaking research, our company adopts impots impoted pre-hard alloy tool steel from Germany. The spline processing adopts CNC equipment. The products have been tested by customers and fully meet the performance quality requirements of similar imported high end products.

3. Types of shaft:

Single keyway Square keyslot High torque key button Dual keyslot
Involute inner spline Round keyslot Rectangle spline Client requirements available


4. Material choice:

5. Torque of Spline Shaft

6. Why choose us?

a. Total solution of highly wear-resistance and corrosion-resistance problems;
b. Expert of engineering design and consulting,
c. Advanced manufacturing capabilities and technology,
d. Lean production management
e. Top quality products with high cost performance

7. Packing Details:

1. Rust-proof oil processing,
2. Oiled paper packages,
3. Bubble wrap package,
4. Special foam packaging,
5. Packing,
6. Sealing.

Joiner Machinery Co.,Ltd is a professional enterprise of spare parts for twin screw extruder: Barrel & Screw Element & Shaft & Side Feeder.

It occupies 15600 square meters with over 100 staffs and  more than140 sets of advanced processing equipments in our plants.Such as the CNC thread grinding machine, the CNC screw milling,the CNC lathe,the CNC surface grinder,the CNC cylindrical grinder,the CNC sawing machine,the automatic deep hole grinding machine,the CNC lathe,the CNC surface grinder,the CNC cylindrical grinder,the CNC sawing machine,the laser marking machine,the vacuum quenching furnace,the vacuum tempering furnace and so on.Ultimately,We become one-stop manufacturer for all services and thereby ensure the good quality through the internal control.There are also some advanced testing equipments,such as the three coordinate measuring system,metallographic analyzer,the Tayer roughness meter,The Janpanese Mitutuyo height gauge,the CMM,the Rockwell hardness tester,Vickers hardness tester ,the three coordinate measuring system and some other advanced testing equipments.Which ensure the products 100% controllable.we have over 20 years of experience in supply and refurbishment for wear parts.

Supplied sample mapping and processing for overseas

-APV                         -KOBE                               -OMC

-Buhler                      -KraussMaffei                     -Theysohn

-Buss                         -Berstorff                           -Toshiba

-Clextral                     -Labtech                            -JSW

-Leistritz                     -Maris                               -Keya

-others

Inspection of screw element Barrels

Joiner will throughly inspect all parts of wear,Cracks,Imperfections,Straightness,and Concentricity.Joiner will rapair broken barrals,and other componets.Inspections need to be performed to determine the severity of damage and if reparation is an option.All conclusion are documented in detailed reports with respective Recommendations.

As Lao Ti said" a journey of a thousand miles begins with a single step"

Joiner always adhere the saying and devete to the field of extrusion for 20 years.We believe in the continuous improvement of pursuit of excellence to achieve win-win cooperation with our customers.

Welcome to visit our company,We believe that if you have visited our factory,you will choose Joiner Machinery.
